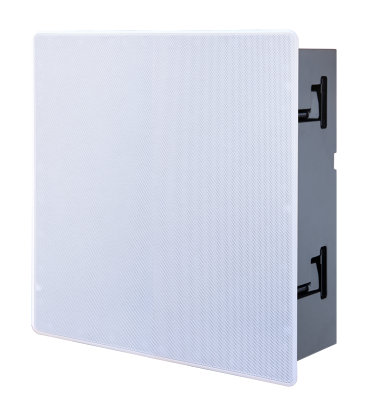

Design | Full back-boxed, high-performance loudspeaker |
Frequency Response: | 65 Hz – 40 kHz ± 3 dB |
Recommended Power: | 20 – 110 W |
Woofer: | Twin 4″ / 10.16 cm high-performance die-cast aluminum framed woofers, 5″ passive drivers |
Tweeter: | 3/4″ / 1.9 cm soft dome with high excursion capabilities |
Impedance: | 6 ohms |
Sensitivity dB @1W-1M | 92 dB |
Dimensions (w x h x d): | 14.09″ x 14.09″ x 4.72″ / 358 x 358 x 120 mm |
Cutout | 13.38 x 13.38 / 340 x 340mm |
grille type | magnetic, paintable, virtually bezel-less white metal (grills may be painted to match your decor) |
accessories/options | Pre-construction brackets |
Speaker Terminals: | Bi-Wire 5 way gold plated |
Weight | 15.05lb / 6.82kg |
Customized Drivers
Bespoke Acoustic Engineering
Every single driver is completely unique to Totem and proprietary in design, engineered by Totem and then manufactured to the strictest standards to meet our parameters by the finest raw driver suppliers in the world. In some cases, where the technology is beyond the capabilities of suppliers or is wished to kept secret, Totem can and will build our own drivers. Every driver exhibits phase linearity, speed, emotion, off axis natural presentation, and spatial articulation.
Handmade Crossovers
With Point-to-Point Connections
Totem crossovers don’t require many parts because of the synergy between our customized drivers, but the components are the world’s best. Our crossovers aren’t built on PCB’s because the laminated conductive tracks are weak and inconsistent. Instead they are secured to a thin piece of fiberboard or insulated polymers and components are mechanically crimped together because it simply sounds better. When we must solder, we choose WBT Silver Solder, the purest in the industry.
Integrated Back Box
Identical open back architectural speakers can actually differ in performance because of the varying size and materials within the cavity where they’re installed. They also transfer significant energy to adjacent rooms. Speakers with integrated back boxes maintain consistent performance anywhere they’re installed, and greatly reduces the amount of sound that bleeds to the adjacent rooms.
